Application Behavior

Application Behavior/Summary

KubeArmor has visibility into systems and application behavior. KubeArmor summarizes/aggregates the information and provides a user-friendly view to figure out the application behavior.

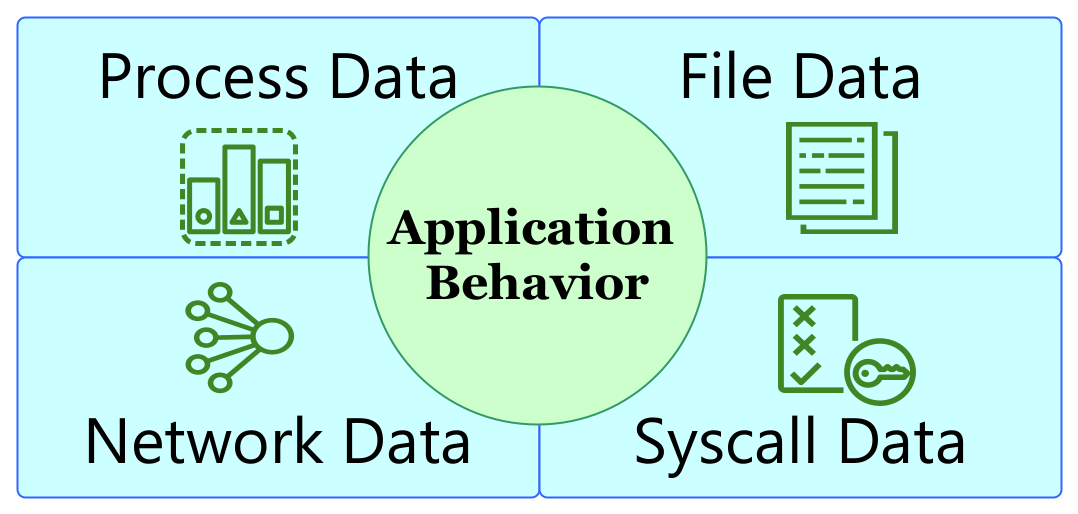

App Behavior

What application behavior is shown?

App Behavior2
  • Process data:
    • What are the processes executing in the pods?
    • What processes are executing through which parent processes?
  • File data:
    • What are the file system accesses made by different processes?
  • Network Accesses:
    • What are the Ingress/Egress connections from the pod?
    • What server binds are done in the pod?

How to get the application behavior?

Pre-requisites:
  1. 1.
    Install KubeArmor
    • curl -sfL http://get.kubearmor.io/ | sudo sh -s -- -b /usr/local/bin && karmor install
  2. 2.
    Install Discovery-engine
    • kubectl apply -f https://raw.githubusercontent.com/kubearmor/discovery-engine/dev/deployments/k8s/deployment.yaml
  3. 3.
    Next you install the workload. If the workload is already installed, then the behavior will be shown based on the new system events only.
  4. 4.
    Get the application summary
    • karmor summary -n NAMESPACE

Sample Summary output

Pod Name dvwa-web-59b677c755-qmpkd
Namespace Name dvwa
Cluster Name pandora-cluster
Container Name dvwa
Labels app=dvwa-web,tier=frontend
Process Data
+-----------------------------------------------------------------------------------------------------+--------------------------+-------+------------------------------+--------+
| SRC PROCESS | DESTINATION PROCESS PATH | COUNT | LAST UPDATED TIME | STATUS |
+-----------------------------------------------------------------------------------------------------+--------------------------+-------+------------------------------+--------+
| /bin/bash | /bin/ls | 2 | Wed Jan 4 12:35:38 UTC 2023 | Allow |
| /bin/bash | /bin/rm | 1 | Wed Jan 4 13:54:37 UTC 2023 | Allow |
| /bin/dash | /bin/cat | 1 | Thu Jan 1 00:00:00 UTC 1970 | Deny |
| /bin/dash | /bin/ping | 1 | Wed Jan 4 12:33:48 UTC 2023 | Allow |
| /bin/dash | /bin/ping | 3 | Wed Jan 4 16:53:50 UTC 2023 | Allow |
| /bin/dash | /usr/bin/head | 2 | Thu Jan 1 00:00:00 UTC 1970 | Deny |
| /bin/dash | /usr/bin/head | 2 | Wed Jan 4 16:53:53 UTC 2023 | Allow |
| /usr/sbin/apache2 | /bin/sh | 1 | Wed Jan 4 12:33:48 UTC 2023 | Allow |
| /usr/sbin/apache2 | /bin/sh | 3 | Wed Jan 4 16:53:50 UTC 2023 | Allow |
| /var/lib/rancher/k3s/data/8307e9b398a0ee686ec38e18339d1464f75158a8b948b059b564246f4af3a0a6/bin/runc | /bin/bash | 1 | Wed Jan 4 12:35:33 UTC 2023 | Allow |
| /var/lib/rancher/k3s/data/8307e9b398a0ee686ec38e18339d1464f75158a8b948b059b564246f4af3a0a6/bin/runc | /bin/bash | 1 | Wed Jan 4 13:54:20 UTC 2023 | Allow |
+-----------------------------------------------------------------------------------------------------+--------------------------+-------+------------------------------+--------+
File Data
+-------------------+------------------------------+-------+------------------------------+--------+
| SRC PROCESS | DESTINATION FILE PATH | COUNT | LAST UPDATED TIME | STATUS |
+-------------------+------------------------------+-------+------------------------------+--------+
| /bin/bash | / | 1 | Wed Jan 4 12:35:34 UTC 2023 | Allow |
| /bin/bash | /etc/ | 10 | Wed Jan 4 13:54:30 UTC 2023 | Allow |
| /bin/bash | /lib/terminfo/x/xterm | 1 | Wed Jan 4 12:35:33 UTC 2023 | Allow |
| /bin/bash | /lib/x86_64-linux-gnu/ | 3 | Wed Jan 4 13:54:20 UTC 2023 | Allow |
| /bin/ls | /etc/ | 2 | Wed Jan 4 12:35:38 UTC 2023 | Allow |
| /bin/ls | /lib/x86_64-linux-gnu/ | 4 | Wed Jan 4 12:35:38 UTC 2023 | Allow |
| /bin/ls | /usr/lib/x86_64-linux-gnu/ | 1 | Wed Jan 4 12:35:38 UTC 2023 | Allow |
| /bin/ping | /etc/ | 21 | Wed Jan 4 16:51:33 UTC 2023 | Allow |
| /bin/ping | /lib/x86_64-linux-gnu/ | 10 | Wed Jan 4 16:51:33 UTC 2023 | Allow |
| /bin/ping | /usr/lib/x86_64-linux-gnu/ | 7 | Wed Jan 4 16:53:50 UTC 2023 | Allow |
| /bin/rm | /etc/ | 2 | Wed Jan 4 13:54:37 UTC 2023 | Allow |
| /bin/sh | /etc/ | 3 | Wed Jan 4 16:51:33 UTC 2023 | Allow |
| /bin/sh | /lib/x86_64-linux-gnu/ | 4 | Wed Jan 4 16:53:50 UTC 2023 | Allow |
| /usr/bin/head | /etc/ | 4 | Wed Jan 4 16:53:53 UTC 2023 | Allow |
| /usr/bin/head | /lib/x86_64-linux-gnu/ | 2 | Wed Jan 4 16:53:53 UTC 2023 | Allow |
| /usr/sbin/apache2 | /etc/ | 32 | Wed Jan 4 16:53:50 UTC 2023 | Allow |
| /usr/sbin/apache2 | /lib/x86_64-linux-gnu/ | 3 | Wed Jan 4 16:51:05 UTC 2023 | Allow |
| /usr/sbin/apache2 | /proc/sys/kernel/ngroups_max | 2 | Wed Jan 4 12:33:28 UTC 2023 | Allow |
| /usr/sbin/apache2 | /tmp/ | 14 | Wed Jan 4 16:53:50 UTC 2023 | Allow |
| /usr/sbin/apache2 | /var/www/html/ | 96 | Wed Jan 4 16:53:50 UTC 2023 | Allow |
+-------------------+------------------------------+-------+------------------------------+--------+
Ingress connections
+----------+-------------------+------------+------+-----------+--------+-------+------------------------------+
| PROTOCOL | COMMAND | POD/SVC/IP | PORT | NAMESPACE | LABELS | COUNT | LAST UPDATED TIME |
+----------+-------------------+------------+------+-----------+--------+-------+------------------------------+
| TCPv6 | /usr/sbin/apache2 | 127.0.0.1 | 80 | | | 6 | Wed Jan 4 12:39:23 UTC 2023 |
+----------+-------------------+------------+------+-----------+--------+-------+------------------------------+
Egress connections
+----------+-------------------+------------------------+------+-----------+--------+-------+------------------------------+
| PROTOCOL | COMMAND | POD/SVC/IP | PORT | NAMESPACE | LABELS | COUNT | LAST UPDATED TIME |
+----------+-------------------+------------------------+------+-----------+--------+-------+------------------------------+
| TCP | /usr/sbin/apache2 | svc/dvwa-mysql-service | 3306 | dvwa | | 15 | Wed Jan 4 12:38:52 UTC 2023 |
+----------+-------------------+------------------------+------+-----------+--------+-------+------------------------------+
Bind Points
+------------+-----------+-----------+--------------+-------+------------------------------+
| PROTOCOL | COMMAND | BIND PORT | BIND ADDRESS | COUNT | LAST UPDATED TIME |
+------------+-----------+-----------+--------------+-------+------------------------------+
| AF_NETLINK | /bin/ping | | | 1 | Wed Jan 4 12:33:48 UTC 2023 |
+------------+-----------+-----------+--------------+-------+------------------------------+
Key highlights in the above summary:
  • Mapping of ingress/egress connections down to the process level.
  • Aggregated view of flows, events. The count depicts how many number of times the event occurred.
  • Process/File/Ingress/Egress/Bind related information
  • Ability to see netlink and unix domain socket connections too.
